Edge Banding Machin -E60

Model: AE-60 Certified Direct Supply

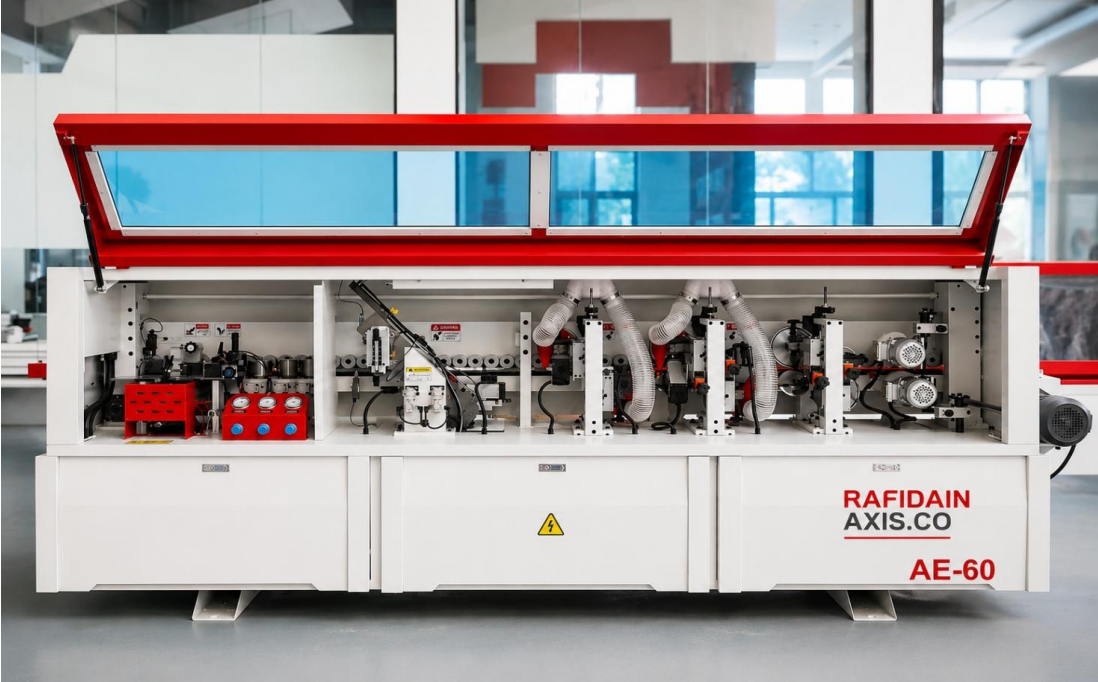

AE-60

1. General Information Machine Name: Edge Banding Machine Model: AE-60 Brand: RAFIDAIN AXIS.CO Machine Type: Edge Banding Machine with 6 functions 2. Scope of Application 6 Functions: Gluing and pressing, End cutting, Rough trimming, Fine trimming, Scraping, Polishing Materials: Solid wood panels, Fibreboard, Particleboard, MDF, PVC, Polyester, Melamine, Wood edge bands Applications: Panel furniture, Custom furniture, Cabinets, Wardrobes, Interior decoration, Edge banding for panels

Function
Gluing and pressing, End cutting, Rough trimming, Fine trimming, Scraping, Polishing

Gluing motor power
0.37 KW

Delivery motor power
1.5 KW

Download Full Catalog & Specs (PDF)

Visual Media & Attachments

Detailed Gallery Showcase

Technical & Commercial Specifications

AE-60

Parameter / Specification	Certified Value / Standard
Function	Gluing and pressing, End cutting, Rough trimming, Fine trimming, Scraping, Polishing
Gluing motor power	0.37 KW
Delivery motor power	1.5 KW
Heating motor power	1.5 KW
Thickness of the wood	10-45 mm
Feeding speed	13 m/min
Air pressure	0.6 Mpa
Voltage	380V/50Hz 3 Phase
Total weight	1050 KG
