Direct Sourcing Sectors & Equipment

CNC Router Automatic Tool Change 1325

CNC Router Automatic Tool Change 1325

CNC Router Automatic Tool Change 1325
Model: 1325-T8 Certified Direct Supply
1325-T8

CNC Router Automatic Tool Change 1325

CNC Router Automatic Tool Change 1325

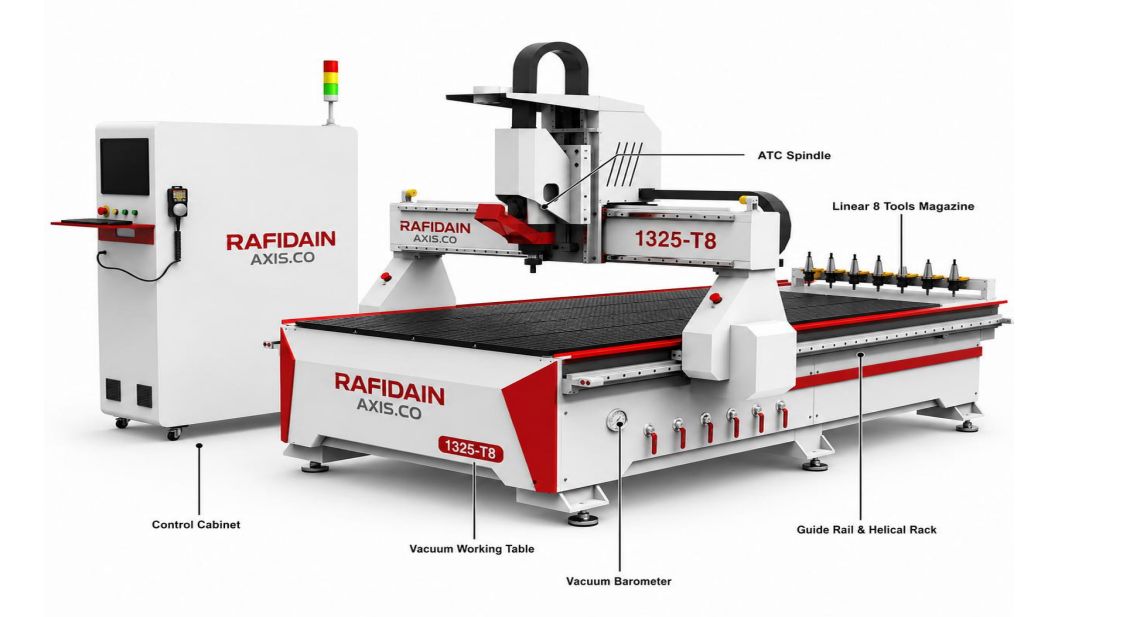

1. General Information Machine Name: A4-E Series Automatic Tool Change CNC Router Brand: RAFIDAIN AXIS.CO Model: 1325-T8 Machine Type: ATC (Automatic Tool Change) CNC Router 2. Scope of Application Furniture: wooden doors, windows, tables, chairs, cabinets, MDF panels, computer desks. Advertising: billboards, logos, signs, acrylic cutting. Other Uses: musical instruments, decoration, PVC, aluminum-plastic. 3. Sales & Delivery Terms Delivery Date: 25 working days Payment Terms: T/T in advance, 50% deposit (at least 30%), balance before shipping Package: Export standard free-fumigation plywood wooden box Warranty: 2-year warranty on the whole machine Technical Support: Software, post-processing, user manual, online video training

Spindle
9.0KW ATC air-cooled ISO30-ER32, 0–24000 rpm
Inverter
11KW high frequency
Motors
1500W AC servo motor + driver (4 sets)
Visual Media & Attachments

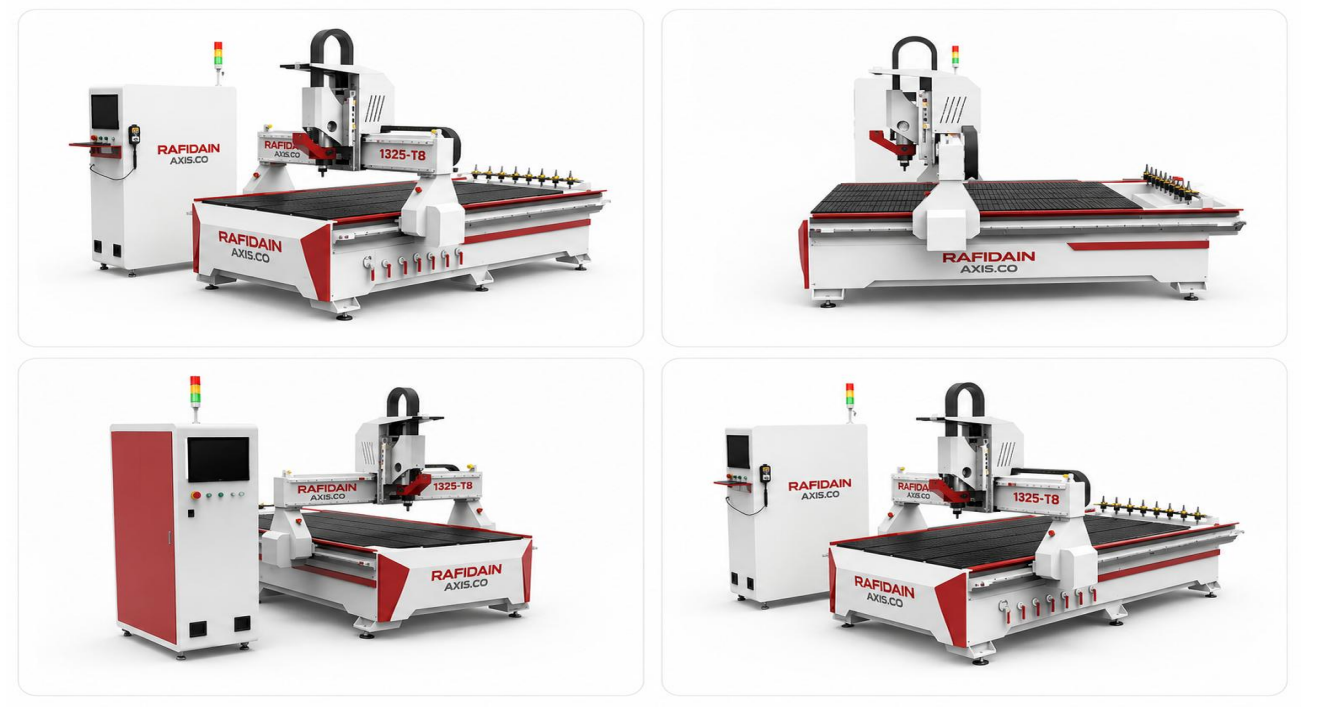

Detailed Gallery Showcase

Technical & Commercial Specifications

1325-T8
Parameter / Specification Certified Value / Standard
Spindle 9.0KW ATC air-cooled ISO30-ER32, 0–24000 rpm
Inverter 11KW high frequency
Motors 1500W AC servo motor + driver (4 sets)
Tool Changer Linear type, 8 tools
Limit Switch Omron limit switch
Vacuum Pump 7.5KW-380V
Dust Collector 3KW-380V
Positioning Accuracy 0.05mm
Enlarged view
